Performance
Raw material: LDPE, PE foam+Alu foil
Density: 25~333kg/m3
Length: customized
Wide: 70~1800 mm
Thickness:
xpe 2~3mm 3~12mm
Ixpe 0.1~0.5mm 0.5~3mm, 3~10mm
Color: black,white and gray,other colors can be customized
Shore hardness: 10~80 degree
Reflective:96%~97%
Structure:Closed cell
Surface smooth: Alu
Flammability:B1 grade
Refractoriness:100-150 degree
Thermal Conductivity:0.040~0.095 w/m.k
Water Absorption:(23degree,24h) 0.2~0.6%
Tearing Strength: 0.2~1.8 KN/m
Elongation at break :100%~240%
Tensile Strength: 0.2~1.6 Mpa
Compressed distortion: 2%~10%
Size change rate: -4%`-8%
Thermal conductivity: 0.040 ~0.095 w/m.k
Certificate: ISO9001,REACH,ROSH,IATF16949,CE
Packaging:roll, tape, gasket or seal formats
1. Medium and high quality are often customized to meet different market.
2. High Cost effective
3. High fire resistance
4. Good after-sale service
5. Strong capacity: One day one container
6. OEM service, 17 years manufacture experience, sample in stock can be offered in one working day
Products features

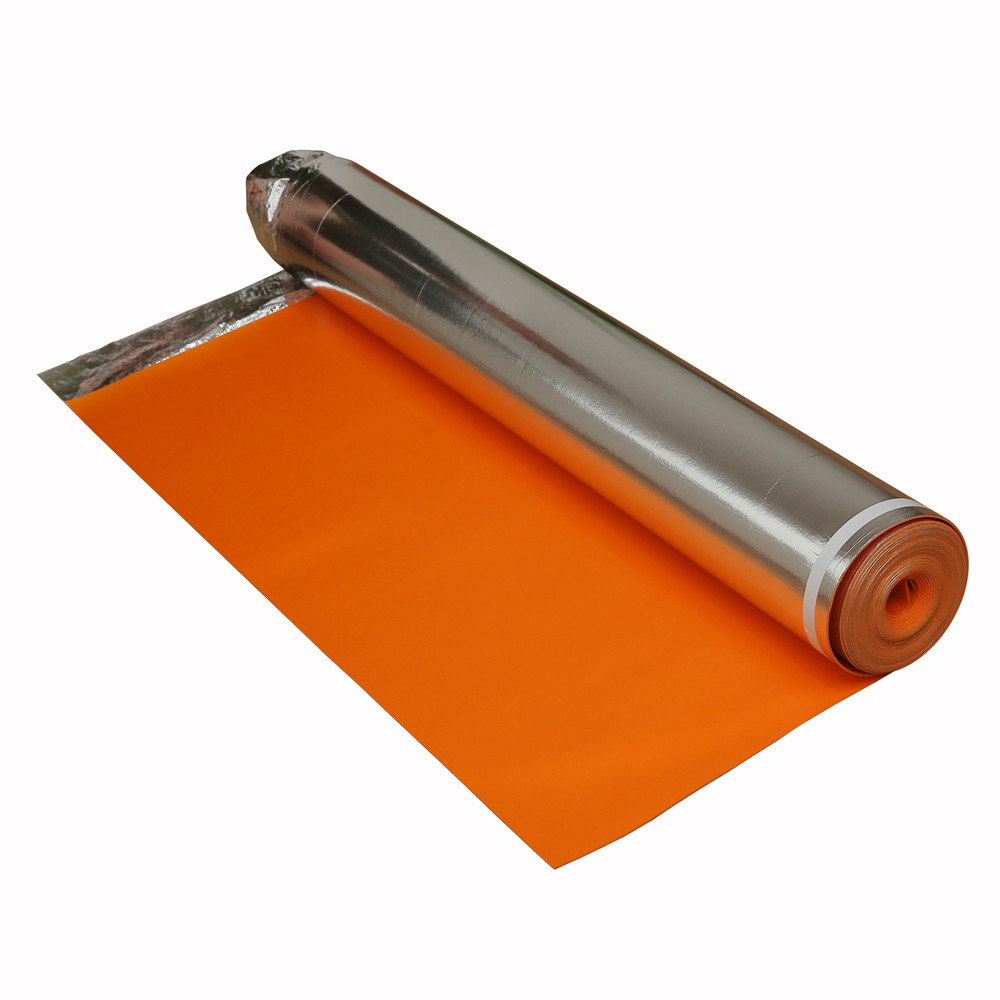

PE foam+pure aluminium foil (coated aluminum foil)
Reflecting up to 97% of radiant heat
Excellent fire properties
Excellent acoustic insulating properties
Environmentally/Eco friendly and fibre-free
Product Description
Foam Dimension-the thickness ,width and length ,they all can be customize.
Customization Aluminum ,PE foam can laminated with pure aluminum foil or coated aluminum foil etc
| Normal thickness | one foaming1-10mm, 100mm after lamination |
| Normal width | 1000mm,1200mm,1300mm,1500mm |
| Normal length | 50m,100m,150m,200m |
Product Testing
| Foam Density (kg/m3) | Shore Hardnes (°) | Water Absorbtion (g/cm2)23 ±2℃,24h | Thermal Conductivity (w/m.k) |
| 200±30 | 60-70 | ≤0.2 | ≤0.095 |
| 125±15 | 50-60 | ≤0.2 | ≤0.084 |
| 100±10 | 45-50 | ≤0.3 | ≤0.073 |
| 66.7±8 | 35-45 | ≤0.3 | ≤0.065 |
| 50±6 | 30-35 | ≤0.4 | ≤0.055 |
| 40±4 | 25-30 | ≤0.4 | ≤0.049 |
| 33.3±3 | 18-25 | ≤0.5 | ≤0.045 |
| 28.6±3 | 13-18 | ≤0.5 | ≤0.040 |
Product Application
Widely used In the fields of Insulation, Sealing and Cushioning, we supply PE foam products in roll, tape, sheet available in areas of
Thermal absorption
Sound absorption
Flame retardant
